Integrate ECharts into an Ionic app

In this post, I show you how to integrate the ECharts library into an Ionic application. ECharts is an open-source charting library released under the Apache License. Baidu initially developed the library, and it is now an Apache Software Foundation project. ECharts draws charts into a canvas element and also provides an SVG renderer.

The library provides many chart types out of the box. The demo page is a good place to start if you want to see the charts in action: https://echarts.apache.org/examples/en/

The ECharts documentation describes all configuration options and methods.

API: https://echarts.apache.org/en/api.html#echarts

Option: https://echarts.apache.org/en/option.html

In this post, we create an Ionic app and display some simple charts. For the following examples, I copied the configuration objects directly from the ECharts demo page.

Setup ¶

We start with the Ionic command-line tool and create a new app based on the tabs template.

ionic start echartsapp tabs

Next, we install the ECharts library and ngx-echarts, which provides an Angular directive that makes integrating ECharts into an Angular app straightforward. See also the ngx-echarts project page for the latest documentation.

npm install echarts
npm install ngx-echarts
npm install @juggle/resize-observer

Next, we have to import provideEchartsCore and the echarts components we want to use in our application.

import {bootstrapApplication} from '@angular/platform-browser';
import {provideEchartsCore} from 'ngx-echarts';

import * as echarts from 'echarts/core';
import {
  CalendarComponent,
  GridComponent,
  LegendComponent,
  TitleComponent,
  TooltipComponent,
  VisualMapComponent
} from 'echarts/components';
import {BarChart, GaugeChart, GraphChart, HeatmapChart, LineChart} from 'echarts/charts';

main.ts

Then configure the imported components with echarts.use().

echarts.use([GridComponent, TitleComponent, TooltipComponent, LegendComponent, CalendarComponent, VisualMapComponent,
  BarChart, LineChart, GaugeChart, GraphChart, HeatmapChart, CanvasRenderer]);

main.ts

Finally, provide echarts with the provideEchartsCore function in the providers array.

    provideEchartsCore({echarts}),

main.ts

Example app ¶

Next, we create a few pages that host our examples.

ionic g page chart1
ionic g page chart2
ionic g page chart3
ionic g page chart4
ionic g page chart5
ionic g page chart6

You can delete all the other pages that the start command created (about, contact, home).

Directive ¶

Before we continue with the example, let's take a quick look at the ngx-echarts library and the echarts directive it provides. To display an ECharts chart, you add the echarts directive to a div tag in your template.

  <div [options]="options" class="demo-chart" echarts></div>

chart1.html

The input property options configures the chart.

  options: EChartsOption = {
    color: ['#3398DB'],

chart1.ts

Remember to import the NgxEchartsDirective directive.

  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonContent, IonTitle]

chart1.ts

The echarts directive supports the following properties:

Chart 1 ¶

The template for the first example is straightforward. We add the echarts directive to a div tag and pass the options object from the TypeScript code into the directive.

<ion-content>
  <div [options]="options" class="demo-chart" echarts></div>
</ion-content>

chart1.html

In the TypeScript file, we set up the options object.

import {Component} from '@angular/core';
import {EChartsOption} from 'echarts';
import {NgxEchartsDirective} from 'ngx-echarts';
import {IonContent, IonHeader, IonTitle, IonToolbar} from "@ionic/angular/standalone";

@Component({
  selector: 'app-chart1',
  templateUrl: 'chart1.html',
  styleUrl: './chart1.scss',
  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonContent, IonTitle]
})
export class Chart1Page {

  options: EChartsOption = {
    color: ['#3398DB'],
    grid: {
      left: '3%',
      right: '4%',
      bottom: '3%',
      containLabel: true
    },
    xAxis: [
      {
        type: 'category',
        data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun'],
        axisTick: {
          alignWithLabel: true
        }
      }
    ],
    yAxis: [
      {
        type: 'value'
      }
    ],
    series: [
      {
        name: 'Test',
        type: 'bar',
        barWidth: '60%',
        data: [10, 52, 200, 334, 390, 330, 220]
      }
    ]
  };

}

chart1.ts

Finally, we add some styles to the SCSS file. We have to assign a width and height to the div element that surrounds the canvas.

@media screen and (orientation: portrait) {
  .demo-chart {
    width: 100vw;
    height: 82vh;
  }
}

@media screen and (orientation: landscape) {
  .demo-chart {
    width: 100vw;
    height: 68vh;
  }
}

chart1.scss

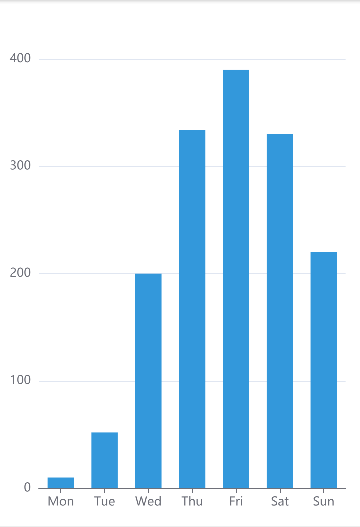

Now you can start the app with ionic serve, and you should see the following chart on the first tab.

Chart 2 ¶

The second chart is built the same way as the first one. The only difference is the ECharts config object.

<ion-content>
  <div [options]="options" class="demo-chart" echarts theme="dark"></div>
</ion-content>

chart2.html

import {Component} from '@angular/core';
import {EChartsOption} from 'echarts';
import {NgxEchartsDirective} from 'ngx-echarts';
import {IonContent, IonHeader, IonTitle, IonToolbar} from "@ionic/angular/standalone";

@Component({
  selector: 'app-chart2',
  templateUrl: 'chart2.html',
  styleUrl: './chart2.scss',
  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonTitle, IonContent]
})
export class Chart2Page {

  options: EChartsOption = {
    legend: {
      data: ['Profit', 'Expenses', 'Income']
    },
    grid: {
      left: '3%',
      right: '4%',
      bottom: '3%',
      containLabel: true
    },
    xAxis: [
      {
        type: 'value'
      }
    ],
    yAxis: [
      {
        type: 'category',
        axisTick: {show: false},
        data: ['Monday', 'Tuesday', 'Wednesday', 'Thursday', 'Friday', 'Saturday', 'Sunday']
      }
    ],
    series: [
      {
        name: 'Profit',
        type: 'bar',
        label: {
          show: true,
          position: 'inside'
        },
        data: [200, 170, 240, 244, 200, 220, 210]
      },
      {
        name: 'Income',
        type: 'bar',
        stack: 'Total',
        label: {
          show: true
        },
        data: [320, 302, 341, 374, 390, 450, 420]
      },
      {
        name: 'Expenses',
        type: 'bar',
        stack: 'Total',
        label: {
          show: true,
          position: 'left'
        },
        data: [-120, -132, -101, -134, -190, -230, -210]
      }
    ]
  };
}

chart2.ts

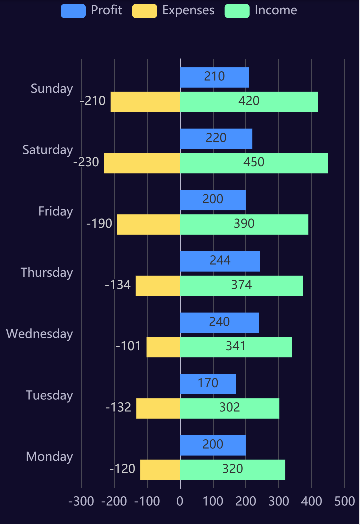

For this example, we use a different theme. In the template, we specify the theme with theme="dark".

The ECharts library provides several pre-built themes. You can find the theme names in the node_modules/echarts/theme directory.

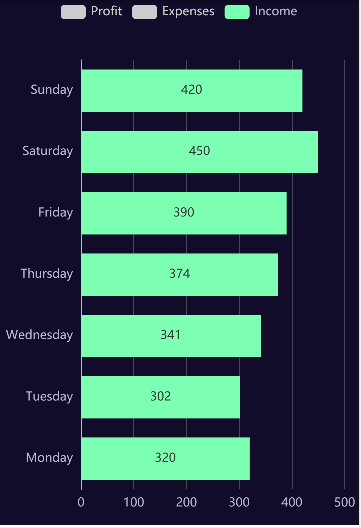

Another thing I want to demonstrate with this example is that the charts have built-in interactivity. In this chart, you can click or tap a legend item, and the chart hides or shows the corresponding data series.

Chart 3 ¶

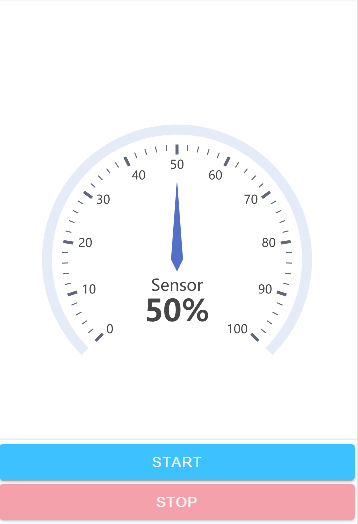

The third chart demonstrates a way to update chart data on the fly. When you click or tap the start button, the application starts a function with setInterval that updates the data every two seconds with a random value.

The echarts directive supports the options property that contains the initial configuration and the merge property, which allows an application to update parts of the options.

<ion-header>
  <ion-toolbar>
    <ion-title>Chart 3</ion-title>
  </ion-toolbar>
</ion-header>

<ion-content>
  <div [merge]="datas" [options]="options" class="demo-chart" echarts></div>
</ion-content>

<ion-footer>
  <ion-button (click)="start()" [disabled]="running" color="secondary" expand="block">Start</ion-button>
  <ion-button (click)="stop()" [disabled]="!running" color="danger" expand="block">Stop</ion-button>
</ion-footer>

chart3.html

The application must assign a new object to the datas instance variable each time it wants to set a new value.

this.datas = {
  series: [{
    data: [{value: Number((Math.random() * 100).toFixed(1))}]
  }]
};

This would not work if you only changed the value like this: this.datas.series[0].data[0].value = Number((Math.random() * 100).toFixed(1))
The echarts directive only picks up the change when the reference to the datas object changes.

import {Component} from '@angular/core';
import {EChartsOption} from 'echarts';
import {NgxEchartsDirective} from 'ngx-echarts';
import {IonButton, IonContent, IonFooter, IonHeader, IonTitle, IonToolbar} from "@ionic/angular/standalone";

@Component({
  selector: 'app-chart3',
  templateUrl: 'chart3.html',
  styleUrl: './chart3.scss',
  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonTitle, IonContent, IonFooter, IonButton]
})
export class Chart3Page {

  running = false;
  options: EChartsOption = {
    series: [{
      type: 'gauge',
      detail: {formatter: '{value}%'},
      data: [{value: 50, name: 'Sensor'}]
    }]
  };
  datas: EChartsOption = {};
  private interval: number | null = null;

  start(): void {
    this.running = true;
    this.interval = window.setInterval(() => {
      this.datas = {
        series: [{
          data: [{value: Number((Math.random() * 100).toFixed(1))}]
        }]
      };
    }, 2000);
  }

  stop(): void {
    this.running = false;
    if (this.interval) {
      clearInterval(this.interval);
    }
  }

}

chart3.ts

Chart 4 ¶

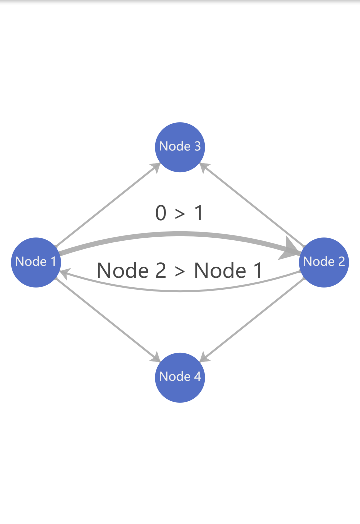

The fourth example displays a simple graph. The template page and TypeScript code are similar to the other examples.

<ion-header>
  <ion-toolbar>
    <ion-title>Chart 4</ion-title>
  </ion-toolbar>
</ion-header>

<ion-content>
  <div [options]="options" class="demo-chart" echarts></div>
</ion-content>

chart4.html

import {Component} from '@angular/core';
import {EChartsOption} from 'echarts';
import {NgxEchartsDirective} from 'ngx-echarts';
import {IonContent, IonHeader, IonTitle, IonToolbar} from "@ionic/angular/standalone";


@Component({
  selector: 'app-chart4',
  templateUrl: 'chart4.html',
  styleUrl: './chart4.scss',
  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonTitle, IonContent]
})
export class Chart4Page {

  options: EChartsOption = {
    title: {
      text: 'Graph Example'
    },
    series: [
      {
        type: 'graph',
        layout: 'none',
        symbolSize: 50,
        roam: true,
        label: {
          show: true
        },
        edgeSymbol: ['circle', 'arrow'],
        edgeSymbolSize: [4, 10],
        data: [{
          name: 'Node 1',
          x: 300,
          y: 300
        }, {
          name: 'Node 2',
          x: 800,
          y: 300
        }, {
          name: 'Node 3',
          x: 550,
          y: 100
        }, {
          name: 'Node 4',
          x: 550,
          y: 500
        }],
        // links: [],
        links: [{
          source: 0,
          target: 1,
          symbolSize: [5, 20],
          label: {
            show: true
          },
          lineStyle: {
            width: 5,
            curveness: 0.2
          }
        }, {
          source: 'Node 2',
          target: 'Node 1',
          label: {
            show: true
          },
          lineStyle: {
            curveness: 0.2
          }
        }, {
          source: 'Node 1',
          target: 'Node 3'
        }, {
          source: 'Node 2',
          target: 'Node 3'
        }, {
          source: 'Node 2',
          target: 'Node 4'
        }, {
          source: 'Node 1',
          target: 'Node 4'
        }],
        lineStyle: {
          opacity: 0.9,
          width: 2,
          curveness: 0
        }
      }
    ]
  };

}

chart4.ts

Chart 5 ¶

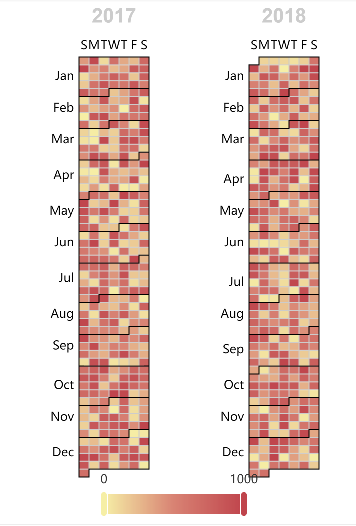

The next chart displays a heatmap. The template page and TypeScript code are similar to the previous examples. Like in the second example, you can interact with the legend.

<ion-header>
  <ion-toolbar>
    <ion-title>Chart 5</ion-title>
  </ion-toolbar>
</ion-header>

<ion-content>
  <div [options]="options" class="demo-chart" echarts></div>
</ion-content>

chart5.html

import {Component} from '@angular/core';
import {format} from 'date-fns';
import {EChartsOption} from 'echarts';
import {NgxEchartsDirective} from 'ngx-echarts';
import {IonContent, IonHeader, IonTitle, IonToolbar} from "@ionic/angular/standalone";

@Component({
  selector: 'app-chart5',
  templateUrl: 'chart5.html',
  styleUrl: './chart5.scss',
  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonTitle, IonContent]
})
export class Chart5Page {

  options: EChartsOption = {
    tooltip: {
      position: 'top',
      formatter: (p: any) => p.data[0] + ': ' + p.data[1]
    },
    visualMap: {
      min: 0,
      max: 1000,
      calculable: true,
      orient: 'horizontal',
      left: 'center',
      bottom: 0,
    },
    calendar: [{
      cellSize: [10, 'auto'],
      bottom: 45,
      orient: 'vertical',
      range: '2017',
      dayLabel: {
        margin: 5
      }
    }, {
      left: 250,
      cellSize: [10, 'auto'],
      bottom: 45,
      orient: 'vertical',
      range: '2018',
      dayLabel: {
        margin: 5
      }
    }],

    series: [{
      type: 'heatmap',
      coordinateSystem: 'calendar',
      calendarIndex: 0,
      data: Chart5Page.getVirtulData(2017)
    }, {
      type: 'heatmap',
      coordinateSystem: 'calendar',
      calendarIndex: 1,
      data: Chart5Page.getVirtulData(2018)
    }]
  };

  private static getVirtulData(year = 2020): [string, number][] {
    const date = new Date(year, 0, 1).getTime();
    const end = new Date(year, 11, 31).getTime();
    const dayTime = 3600 * 24 * 1000;
    const data: [string, number][] = [];
    for (let time = date; time <= end; time += dayTime) {
      data.push([
        format(time, 'yyyy-MM-dd'),
        Math.floor(Math.random() * 1000)
      ]);
    }
    return data;
  }

}

chart5.ts

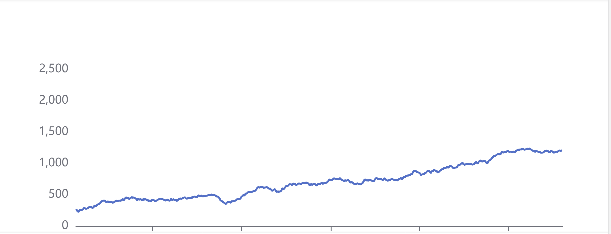

Chart 6 ¶

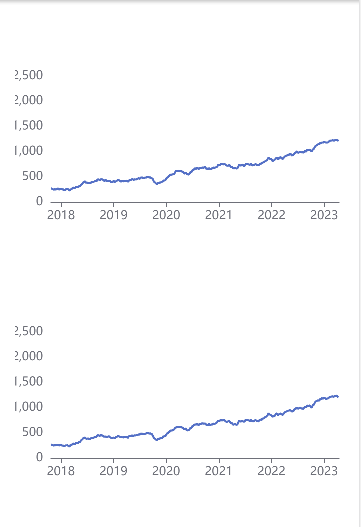

The last example shows how to embed two charts into one page. In the template page, we add two div tags with the echarts directive.

<ion-header>
  <ion-toolbar>
    <ion-title>Chart 6</ion-title>
  </ion-toolbar>
</ion-header>

<ion-content class="ion-padding">
  <div [merge]="updateOptions1" [options]="options1" class="demo-chart" echarts></div>
  <div [merge]="updateOptions2" [options]="options2" class="demo-chart" echarts></div>
</ion-content>

chart6.html

In the SCSS file, we use a media query to set the height of the div depending on the device orientation. If the device is in landscape mode, we set the height to 82% of the viewport height, and in portrait mode, we set it to 40% of the viewport height. With this style, you see both charts in portrait mode and one chart in landscape mode.

@media screen and (orientation: portrait) {
  .demo-chart {
    width: 100vw;
    height: 40vh;
  }
}

@media screen and (orientation: landscape) {
  .demo-chart {
    width: 100vw;
    height: 82vh;
  }
}

chart6.scss

The TypeScript code defines the two configuration options (options1 and options2). When the user enters the page (ionViewWillEnter), the application starts a job that runs every second and generates random values. Like in the third example, we use the merge option to update the chart with the new values.

import {Component} from '@angular/core';
import {ViewWillEnter, ViewWillLeave} from '@ionic/angular';
import {EChartsOption} from 'echarts';
import {NgxEchartsDirective} from 'ngx-echarts';
import {IonContent, IonHeader, IonTitle, IonToolbar} from "@ionic/angular/standalone";

type DataType = { name: string, value: [string, number] };

@Component({
  selector: 'app-chart6',
  templateUrl: 'chart6.html',
  styleUrl: './chart6.scss',
  imports: [NgxEchartsDirective, IonHeader, IonToolbar, IonTitle, IonContent]
})
export class Chart6Page implements ViewWillEnter, ViewWillLeave {
  private static oneDay = 24 * 3600 * 1000;

  data1: DataType[] = [];
  data2: DataType[] = [];
  updateOptions1!: { series: { data: DataType[] }[] };
  updateOptions2!: { series: { data: DataType[] }[] };
  options1: EChartsOption = {
    title: {
      text: 'Dynamic Data 1'
    },
    tooltip: {
      trigger: 'axis',
      formatter: (params: any) => {
        const param = params[0];
        const date = new Date(param.name);
        return date.getDate() + '/' + (date.getMonth() + 1) + '/' + date.getFullYear() + ' : ' + param.value[1];
      },
      axisPointer: {
        animation: false
      }
    },
    xAxis: {
      type: 'time',
      splitLine: {
        show: false
      }
    },
    yAxis: {
      type: 'value',
      boundaryGap: [0, '100%'],
      splitLine: {
        show: false
      }
    },
    series: [{
      name: 'Sumulation Data',
      type: 'line',
      showSymbol: false,
      data: this.data1
    }]
  };
  options2: EChartsOption = {
    title: {
      text: 'Dynamic Data 2'
    },
    tooltip: {
      trigger: 'axis',
      formatter: (params: any) => {
        const param = params[0];
        const date = new Date(param.name);
        return date.getDate() + '/' + (date.getMonth() + 1) + '/' + date.getFullYear() + ' : ' + param.value[1];
      },
      axisPointer: {
        animation: false
      }
    },
    xAxis: {
      type: 'time',
      splitLine: {
        show: false
      }
    },
    yAxis: {
      type: 'value',
      boundaryGap: [0, '100%'],
      splitLine: {
        show: false
      }
    },
    series: [{
      name: 'Sumulation Data',
      type: 'line',
      showSymbol: false,
      data: this.data2
    }]
  };
  private now = new Date(2017, 9, 3);
  private value = Math.random() * 1000;
  private randomDataInterval!: number;

  constructor() {
    for (let i = 0; i < 1000; i++) {
      this.data1.push(this.randomData());
      this.data2.push(this.randomData());
    }
  }

  ionViewWillEnter(): void {
    this.randomDataInterval = window.setInterval(() => {
      for (let i = 0; i < 5; i++) {
        this.data1.shift();
        this.data1.push(this.randomData());
        this.data2.shift();
        this.data2.push(this.randomData());
      }

      this.updateOptions1 = {
        series: [{
          data: this.data1
        }]
      };

      this.updateOptions2 = {
        series: [{
          data: this.data2
        }]
      };
    }, 1000);
  }

  ionViewWillLeave(): void {
    clearInterval(this.randomDataInterval);
  }

  private randomData(): DataType {
    this.now = new Date(+this.now + Chart6Page.oneDay);
    this.value = this.value + Math.random() * 21 - 10;
    return {
      name: this.now.toString(),
      value: [
        [this.now.getFullYear(), this.now.getMonth() + 1, this.now.getDate()].join('/'),
        Math.round(this.value)
      ]
    };
  }

}

chart6.ts

You find the complete source code for the application on GitHub.
